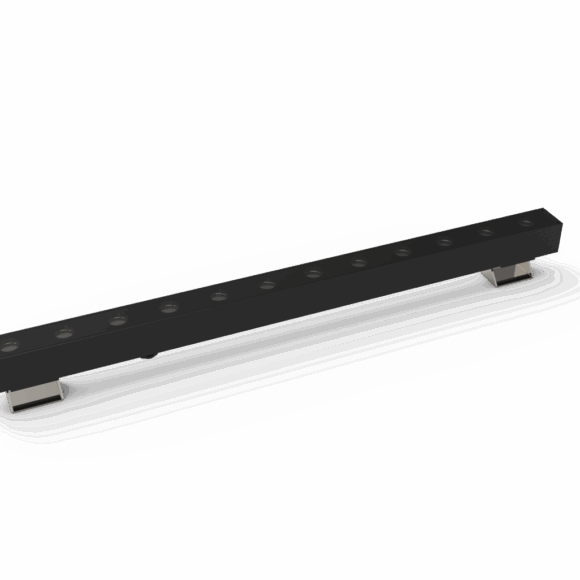

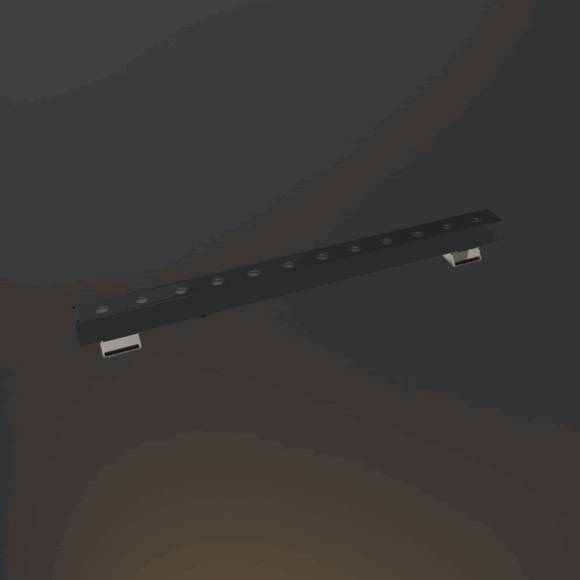

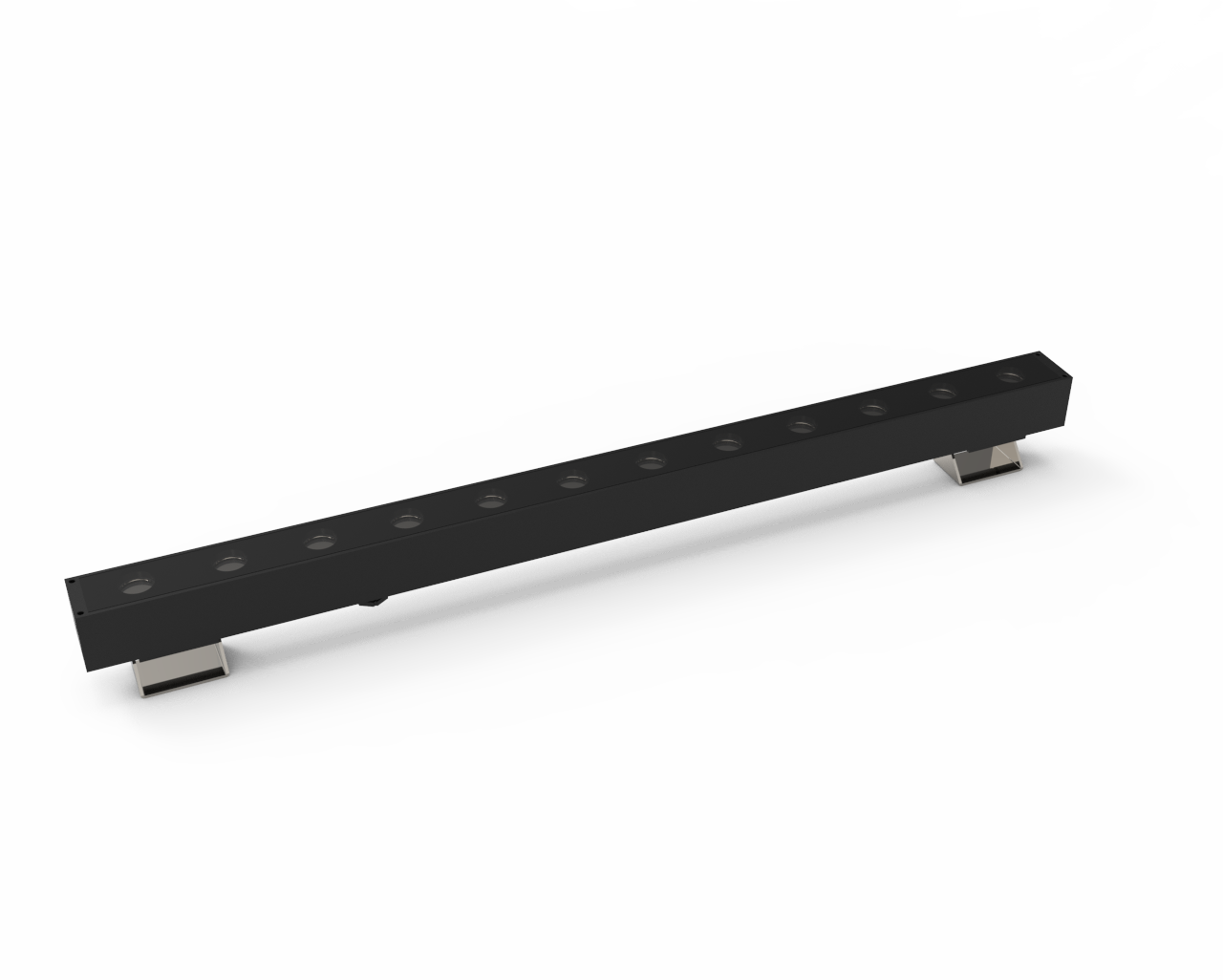

Lyne
Waterproof & compact linear LED light
Outdoor range
Linear lightings
Colour temperature
2700K – 3000K – 3500K – 4000K – 5000K
CRI
CRI 80
CRI 90 (95 upon request)
Optics/Diffusers
Wall washer
Finishing
Charcoal grey aluminium profile and end-caps (other finishing upon request)
IP
IP66
Electric class
III
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation Discover the whole range Lyne
Lyne
Dimensions
Length : 262mm - 508mm - 754mm - 1000mm
Width : 32mm
Height : 30mm (61.5mm with diffuser)
Net weight
262mm : 0.45 kg
508mm : 0.85 kg
754mm : 1.24 kg
1000mm : 1.64 kg
Power supply
24VCC : chained in series version, 10m maximum (without control or dimming system)
Control/dimming version : Individual external driver 350mA (DALI, 0-10V, DMX…)
LED power
262mm : 6 LED – 6W
508mm : 12 LED – 12W
754mm: 18 LED – 18W
1000mm : 24 LED – 24W
