Aurore Recessed versions
Highly flexible recessed ceiling downlight for general & accent lighting
Indoor range
Ceiling & Wall
CRI
CRI > 90 (standard version)
CRI 95, R9 > 90 (premium version)
UGR
< 15
Finishing
White matt finish RAL 9003 (other upon request)
Electric class
III
IP
IP40
Colour temperature
2700K - 3000K - 3500K - 4000K - 5000K
Axis intensity
1800 to 75000 cd according to version
Optics / Diffusers
7° - 12° - 15° - 20° - 25° - 30° - 35° - Elliptic
Option(s)
Special filters, honey comb upon request
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation Discover the whole range Aurore Recessed versions

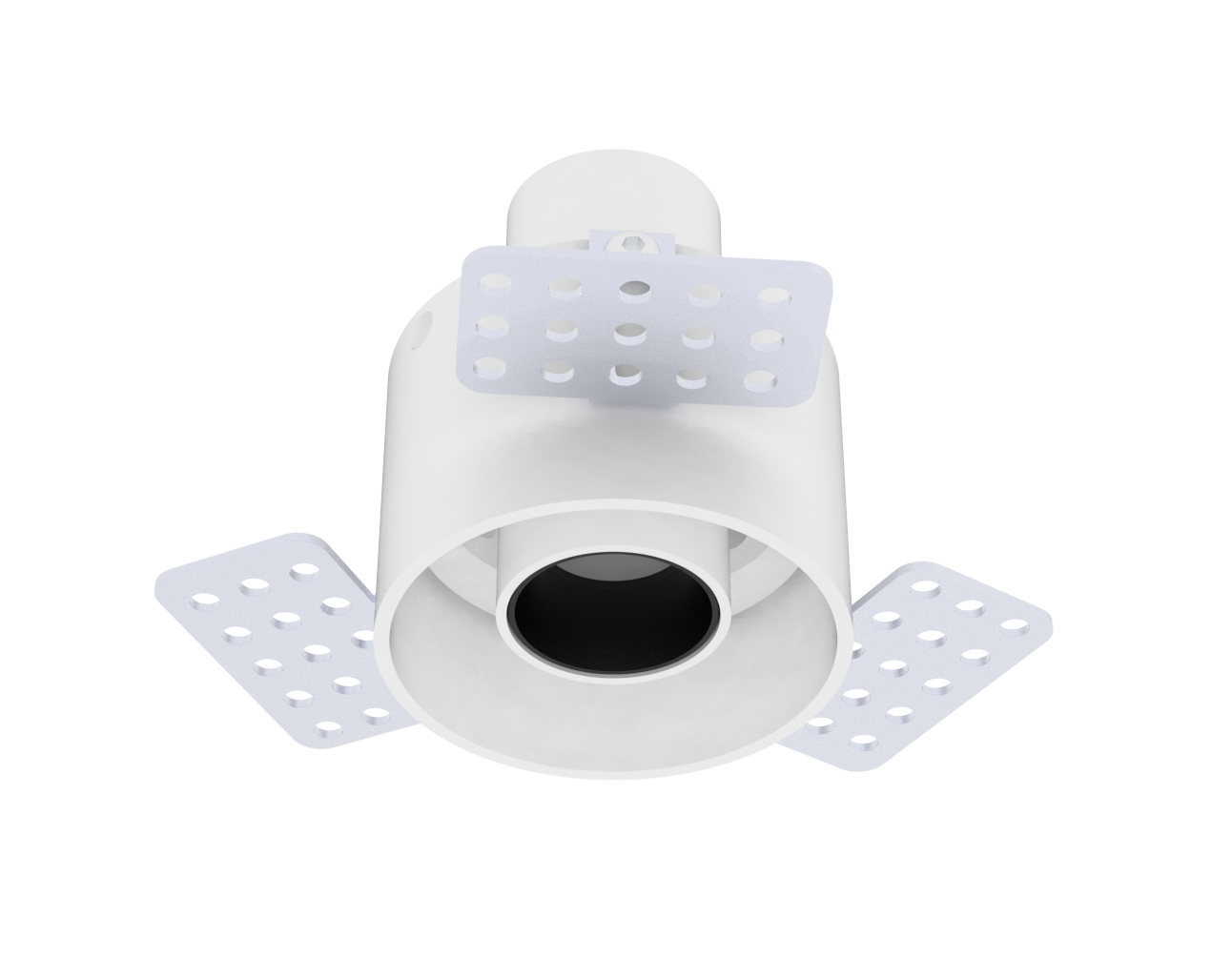

Aurore D22 Flush trimless version
Dimensions
Length : 53.5mm
Diameter : 22mm
Net weight
0.065kg
Power supply
700mA remote constant current driver
LED power
2W
Aurore D22 Ring
Dimensions
Length : 50mm
Diameter : 22mm
Net weight
0.06kg
Power supply
700mA remote constant current driver
LED power
2W
Aurore D22 Trimless
Dimensions
Length : 50mm
Diameter : 22mm
Net weight
0.06kg
Power supply
700mA remote constant current driver
LED power
2W
Aurore D40 Trimless
Dimensions
Length : 80mm
Diameter : 40mm
Net weight
0.150 kg
Luminous flux
300 to 800 lm according to version
Power supply
350mA to 700mA constant current driver according to version
Dimmable driver upon request
LED power
4W to 10W
Aurore D52 Fixed canon
Dimensions
Length : 95mm or 140mm
Diameter : 52mm
Net weight
0.40kg
Luminous flux
600 to 1500 lm according to version
Power supply
350mA to 1400mA constant current driver according to version
Dimmable driver upon request
LED power
6W to 25W
Aurore D52 Ring
Dimensions
Length : 95mm or 140mm
Diameter : 52mm
Net weight
0.450 kg
Luminous flux
600 to 2000 lm according to version
Power supply
350mA to 1400mA constant current driver according to version
Dimmable driver upon request
LED power
6W to 20W
Aurore D52 Adjustable trimless
Dimensions
Length : 95mm or 140mm
Diameter : 52 mm
Net weight
0.450kg
Luminous flux
600 to 2000 lm according to version
Power supply
350mA to 1.400mA constant current driver according to version
Dimmable driver upon request
LED power
6W to 25W
Aurore D52 Fixed trimless
Dimensions
Length : 162mm
Diameter : 55mm
Net weight
0.550kg
Power supply
350mA to 1.400mA constant current driver according to selected version
Dimmable driver upon request
LED power
6W to 25W
Aurore D60 Trimless
Dimensions
Length : 145mm
Diameter : 61mm
Net weight
0.45 kg
Luminous flux
600 to 2000 lm according to version
Power supply
350mA to 1.400mA constant current driver according to version
Dimmable driver upon request
LED power
6W to 25W
Aurore D60 Fixed canon
Dimensions
Length : 145mm
Diameter : 61mm
Net weight
0.40 kg
Luminous flux
600 to 1500 lm according to version
Power supply
350mA to 1400mA constant current driver according to selected version
Dimmable driver as an option
LED power
6W to 25W driver included
Aurore D60 Ring
Dimensions
Length : 145mm
Diameter : 61mm
Net weight
0.45 kg
Luminous flux
600 to 2000 lm according to version
Power supply
350mA to 1,400mA constant current driver according to version
Dimmable driver upon request
LED power
6W to 25W
Aurore D75 Trimless
Dimensions
Length : 100mm
Diameter : 75mm
Net weight
0.50 kg
Luminous flux
600 to 2000 lm according to version
Power supply
350mA to 1.400mA constant current driver according to selected version
Dimmable driver upon request
LED power
6W to 25W
Aurore D82 Trimless
Dimensions
Length : 146mm
Diameter : 81mm
Net weight
0.90 kg
Luminous flux
1500 to 2500 lm
Power supply
350mA to 1.400mA constant current driver according to version
Dimmable driver upon request
LED power
15W to 25W
Aurore D82 Trimless Tunable White
Dimensions
Length : 146mm
Diameter : 81mm
Net weight
0.90 kg
Colour temperature
3 LED 2700K – 4000K – 6500K
Optics/Diffusers
8°- 20°- 30º
Luminous flux
2300 to 2600 lm according to version
Power supply
Remote constant current DMX driver 350mA to 700mA
(1A possible with driver flanged at 30W max)
LED power
30W max
